Multifunctional AC charging pile

Multifunctional AC charging pile

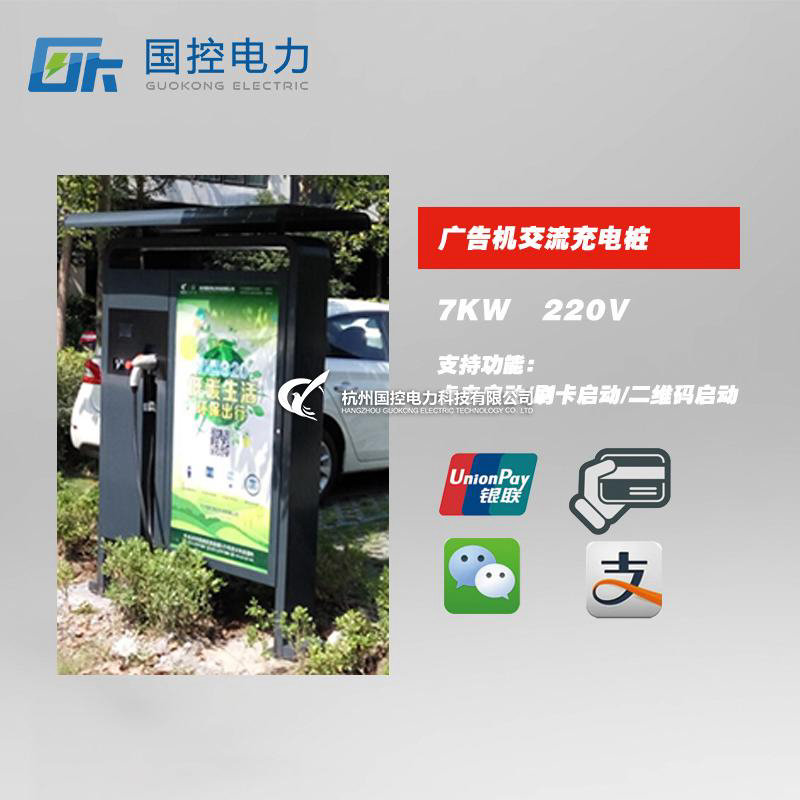

The multifunctional AC charging pile preserves all the original functions of the charging pile, and has a liquid crystal display screen, a magnetic card sensing area and an emergency stop button. It is also specially designed to connect with advertising space, and LED lights are used for lighting at night, so that charging equipment and advertising equipment are perfectly combined, and customers' benefits are higher. The AC charging pile with advertising space is suitable for installation in public places such as office buildings, shopping malls, hotels, public parking lots and road shoulders. It has waterproof, lightning-proof, heat-proof and dust-proof design. Power grid input overvoltage and undervoltage protection; Output current and short circuit protection; Leakage protection; Emergency stop protection; Connection fault protection; Grounding protection.

Product size

Product parameter

 Output rated power: 7KW(220V AC 32A)

Operating humidity: 5%~95%

Input rated power: 220V AC 50Hz

Operating humidity: ≤95%

Storage temperature: -30~70℃

Power factor (full load): > 0.99

Working temperature: -25~55℃

Protection grade: IP54

Charging standard: in line with GB/T 18487.1 -2015

Main function

Multifunctional charging: The charging pile has the functions of charging according to the amount of electricity, charging according to the amount and automatic charging (stopping when full). Protection function: When the connection is abnormal during charging, the charging pile can automatically cut off the output power and install an emergency stop button. Charge card payment function: The charging pile is equipped with IC card reading device, which supports reading contact IC card and realizes charging control and charging charge. Metering and timing functions: AC electric energy metering conforms to GB/T28569, and has the functions of calculating charging amount and charging time. Self-inspection function: charging pile has self-inspection and fault alarm functions, which can support remote upgrade, monitoring, reset and restart. Communication function: charging pile has the function of communicating with superior monitoring and management system, and supports CAN bus, Ethernet, GPRS and other communication modes. Charging reservation: Lock the charging station according to the reservation information of the superior interactive platform, and reserve the charging station for the user. Multi-means payment: Support third-party payment platforms, bank cards, mobile payment and other means
