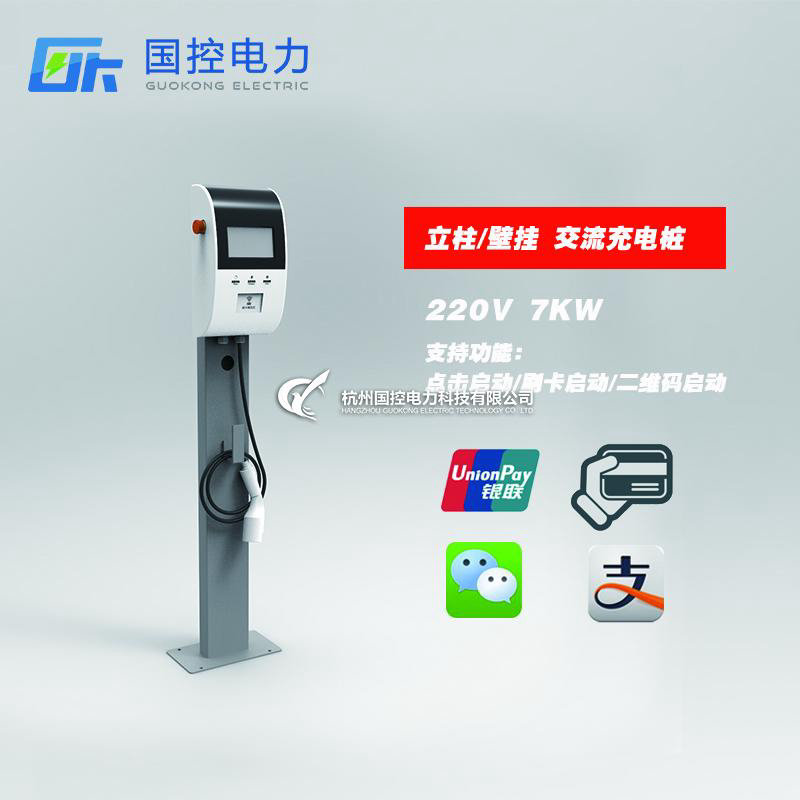

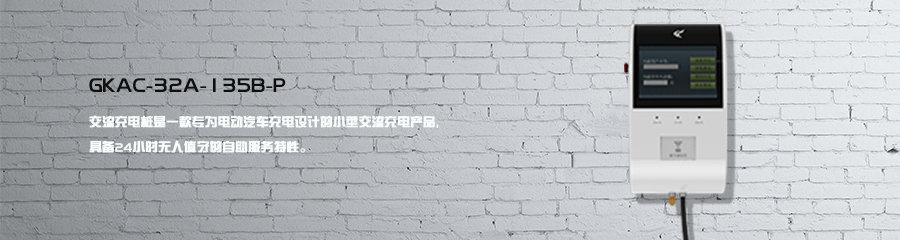

GK-AC-135B AC charging pile

Product parameter Applicable environment: indoor/outdoor Output rated power: 7KW(220V AC 32A) Product size: 250mmx140mmx450mm Input rated power: 220V AC 50Hz Product weight: 8Kg

GK-AC-135B AC charging pile

Product parameter

Applicable environment: indoor/outdoor

Output rated power: 7KW(220V AC 32A)

Product size: 250mmx140mmx450mm

Input rated power: 220V AC 50Hz

Product weight: 8Kg

Storage temperature: -30~70℃

Column size: 120x60x1420mm

Working temperature: -25~55℃

Column base size: 300x200x5mm

Operating humidity: 5%~95%

Column weight: 11.5Kg

Storage relative humidity: ≤95%

Cable length: 5m

Protection grade: IP54

Charging standard: in line with GB/T 18487.1 -2015

Main function

Multifunctional charging: The charging pile has the functions of charging according to the amount of electricity, charging according to the amount and automatic charging (stopping when full).

Protection function: When the connection is abnormal during charging, the charging pile can automatically cut off the output power and install an emergency stop button.

Charge card payment function: The charging pile is equipped with IC card reading device, which supports reading contact IC card and realizes charging control and charging charge.

Metering and timing functions: AC electric energy metering conforms to GB/T28569, and has the functions of calculating charging amount and charging time.

Self-inspection function: charging pile has self-inspection and fault alarm functions, which can support remote upgrade, monitoring, reset and restart.

Communication function: charging pile has the function of communicating with superior monitoring and management system, and supports CAN bus, Ethernet, GPRS and other communication modes.

Charging reservation: Lock the charging station according to the reservation information of the superior interactive platform, and reserve the charging station for the user.

Multi-means payment: Support third-party payment platform, bank card, mobile phone payment and other means.
